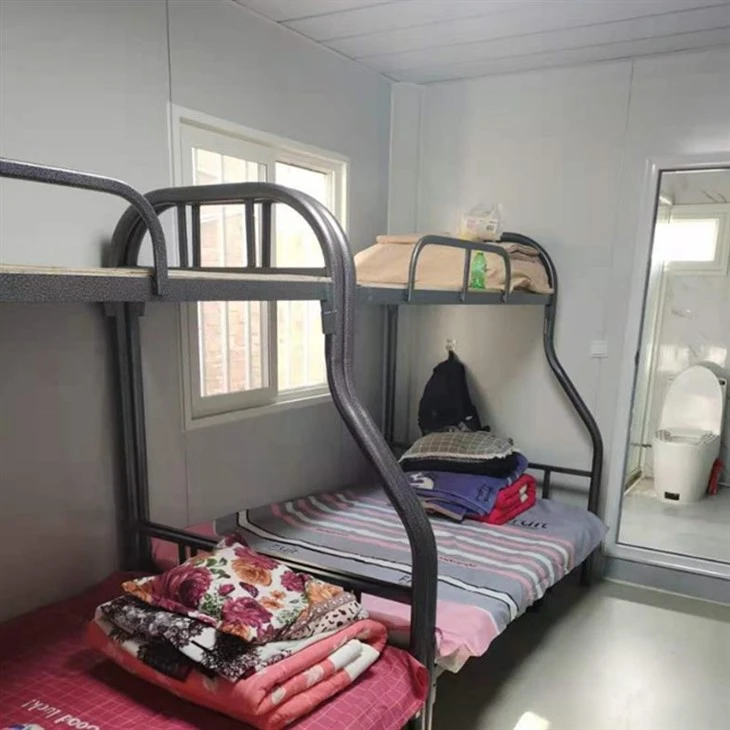

What is a Portable Prefab House with Bedrooms?
A portable prefabricated house is one in which the top and bottom frames have been prefabricated. The only places that need to be spliced are the columns, walls, doors and windows. The splicing is easy and quick.
What are the advantages of portable prefabricated houses?
This Portable Prefab House with Bedrooms are easy to assemble and disassemble.
Standardized temporary building units are convenient for safe management.
Environmentally friendly and efficient: can be used multiple times.
Applicable to: construction site dormitories, offices, factory warehouse housing, etc.
About Company
Jiangsu Longze Modular Building Co., Ltd. is an expert in prefabricated houses
Established in 2021, Jiangsu Longze is a Chinese supplier and manufacturer of portable prefabricated houses. It has professional container R&D capabilities and has obtained international ISO9001 and CE certifications.
For more than 10 years, Longze Module has been deeply involved in the field of prefabricated houses, and is committed to the R&D, manufacturing and sales of new packing boxes, quick assembly boxes, mobile houses, light steel creative villas, double-wing expansion boxes and space capsule-related supporting products.
Specifications: [Customization options]
Technical Specifications |
||||
|
Component Name (Customizable) 6055*2990*2896mm |
This Configuration is the Standard Model |
Unit |
Quantity |
|
|
Main Frame 2.3mm |
Top Frame |
Electrostatic painted top crossbeam 170mm |
pc |
2.00 |
|
Electrostatic painted top side beam 170mm |
pc |
2.00 |
||
|
40*60 1.3mm square tube |
pc |
5.00 |
||
|
20*40mm square tube, 20*20mm square tube |
pc |
3.00 |
||
|
Bottom Frame |
Electrostatic painted bottom crossbeam 160mm |
pc |
2.00 |
|
|
Electrostatic painted bottom side beam 160mm |
pc |
2.00 |
||
|
Square tube 50*100 horizontal brace |
pc |
9.00 |
||
|
Integrated flashing channel |
set |
1.00 |
||
|
Columns |
Fully painted columns, 150*210mm |
pc |
4.00 |
|
|
Corner Fittings |
Painted upper corner fitting 160*160*200mm |
pc |
4.00 |
|
|
Painted lower corner fitting 160*160*160mm |
pc |
4.00 |
||
|
Roofing Sheet |
0.46mm color steel coil, pressed into special 980-wave type for higher strength, no deformation, no water pooling, 360°咬合, special waterproofing method |
set |
1.00 |
|
|
Roof Insulation |
50mm glass wool insulation, density 18kg/m³, PE resin moisture-proof film |
set |
1.00 |
|
|
Downpipe |
Downpipe |
50# PVC downpipe |
pc |
4.00 |
|
Ceiling |
Complete ceiling |
2820*831*0.3mm color steel integrated patterned ceiling panel with aluminum corner |
set |
1.00 |
|
Door |
Steel security door |
Prefabricated container luxury steel integrated door 840*2035 |
pc |
1.00 |
|
Window |
Security window |
Double-glazed insulated PVC window 925*1100mm, standard with security and screen |
pc |
2.00 |
|
Wall Panel |
Composite panel |
950*50mm rock wool composite panel, double-sided 0.3mm steel plate, rock wool density 70kg/m³³ |
set |
1.00 |
|
Floor |
Cement fiber pressure board |
2830*1174*18mm |
set |
1.00 |
|
Floor vinyl |
1.6mm |
set |
1.00 |
|
|
Baseboard |
PVC material |
set |
1.00 |
|
|
Corner bead |
Internal Corner Bead |
Color steel corner bead, white/gray |
pc |
4.00 |
|
Electrical Components |
Electrical Components |
Industrial socket box, industrial socket (1 set), distribution box (1 pc), 32A circuit breaker (1 pc), three 10A duplex outlets, single switch (1 pc), 16A triple outlet (1 pc), 2 LED strip lights, full wiring set |
set |
1.00 |
|
Auxiliary Materials |
Auxiliary Materials |
Screws, self-drilling screws, sealant, internal container connectors |
set |
1.00 |
Advantages and features of portable prefabricated houses with bedrooms
1. Wide range of applications, can be used in a variety of housing modes. Very suitable for modular/prefabricated field offices, cabins, warehouses, villas, shops, hotels, camps, offices.
2. Low price, tens of dollars per square meter, much lower than self-built houses.
3. The structure is made of galvanized steel, which is durable, long life, not easy to damage, and low maintenance cost.
Instructions to buyers
1. All our products are customized. If you have any unresolved questions, please contact our professional customer service.
We will answer them one by one.
2. We can provide you with 2D and 3D solutions
3. We have professional logistics from Alibaba, if you don't have a freight forwarder, we can introduce it to you.
4. About price. Each specially customized product needs to be calculated in detail by a cost engineer, and we can also customize the payment method according to your budget. If you need, you can contact our professional customer service representative.
Application
1. Applicable to office, residence, dormitory, bathroom, simple transportation and easy to build
Specifications: Specifications of products on sale
6055*2990*2896 Size can be customized
Contact
Welcome to purchase high-end portable prefabricated houses. It is inexpensive and easy to install.
