20 years of professional container manufacturing experience, obtained international 9001, and CE certification, as well as a number of container invention patents, prefabricated modular steel structure container house is a welded structure and bolted structure, the frame is a special type of pressed steel plate, the side panel has special sound insulation, heat insulation filler, can play heat insulation, sound insulation, cold and fireproof, non-flammable, non-mildew, non-mold, durable, structural life of 30 years. Through the industrialized production model, the core advantages of "high efficiency, low price, environmental protection, and durability" are realized, especially suitable for application scenarios with high requirements for timeliness, cost control and flexibility.
Details
Jiangsu Suqian Longze Modular Building Co., Ltd. was established in 2021 with a registered capital of 30 million yuan; it is affiliated to Longwan Group. Our company has domestically advanced production lines for various sandwich panels and corrugated sandwich panels and professional production technicians. The annual production capacity of color steel sandwich panels reaches 500,000 square meters; the EPS sandwich panels, polyurethane sandwich panels, rock wool sandwich panels, glass wool sandwich panels, etc. produced have been widely used in large industrial plants, electronic clean workshops, warehouses, cold storages, mobile homes, building floors, clean workshops, and places that require thermal insulation. While selling and renting mobile homes with standard modules and container houses of standard sizes, the company can also customize special mobile homes and container houses of any size according to customer requirements to meet the housing needs of different customers; we have successfully provided professional services in the sales of light steel mobile homes and container houses for hundreds of construction companies.
Frame
A. We use hot dip galvanized Q235 steel for all beams, columns and link keys. It is high performance and rust proof. Some factories only use electrolytic plate or black steel material, which will rust easily. Ours is rust free for many years.
B. We use 2.5mm galvanized steel. Other factories only use 2.3mm steel. Our products are stronger and last longer.
Large Space and Luxury Decoration
A. Large Space: Our standard exterior dimensions are 6055*2990*2896mm. This is much larger than most mobile homes, which are only 2.4x6x 2.5m.
B. Luxury Decoration: The steel structure is hidden inside the wall, the cables are hidden inside the ceiling, and there is iron sheet edging.
High-performance drainage system
A. Our units feature a four-side internal drainage system. The curved pieces with troughs and aqueducts are hidden in the columns, working together to allow water to flow out easily. Even heavy rain will not clog this drainage system. Other plants have smaller drainage channels and the gutters are easily clogged.
B. All our containers are assembled using bolts. No welding is required. This means that the container house is easy to assemble. It is easy for 2 adults to move all the materials and assemble them.
Specification parameters
| Technical specifications requirements for packaging boxes | ||||
|
Component name (customizable) 6055 * 2990 * 2896mm |
This configuration is a standard model |
Unit |
Quantity |
|
|
Main frame 2.3mm |
Top frame |
Electrostatic baking paint top crossbeam 170mm |
Branch |
2.00 |
|
Electrostatic baking paint top side beam 170mm |
Branch |
2.00 |
||
|
40 * 60 1.3mm square tube |
Branch |
5.00 |
||
|
20 * 40 * mm square tube, 20 * 20 * mm square tube |
Branch |
3.00 |
||
|
Bottom frame |
Electrostatic baking paint bottom crossbeam 160mm |
Branch |
2.00 |
|
|
Electrostatic baking paint bottom side beam 160mm |
Branch |
2.00 |
||
|
Square tube 50 * 100 cross brace |
Branch |
9.00 |
||
|
Integrated floodwater tank |
Cover |
1.00 |
||
|
Column |
Complete set of painted columns, 150 * 210mm |
Branch |
4.00 |
|
|
Corner piece |
Painted corner piece 160 * 160 * 200mm |
Individual |
4.00 |
|
|
Painted corner piece 160 * 160 * 160mm |
Individual |
4.00 |
||
|
Color roll cap |
0.46mm color steel coil, pressed into a special 980 watt shape, with higher strength, no deformation, no water retention, 360 degree bite, special waterproof method |
Cover |
1.00 |
|
|
Top insulation |
50mm insulation glass wool, melting weight 18kg/m ³, PE resin moisture-proof film |
Cover |
1.00 |
|
| Downpipe |
Downpipe |
50 # PVC downpipe |
Branch |
4.00 |
|
Suspended ceiling |
Complete ceiling |
2820 * 831 * 0.3mm color steel integrated ceiling panel with patterned pattern, with angled aluminum |
Cover |
1.00 |
|
Door |
Steel Security Doors |
Luxury steel integrated door for packaging box 840 * 2035 |
Individual |
1.00 |
|
Window |
Security window |
Double glass hollow plastic steel window 925 * 1100mm, equipped with anti-theft and screen windows as standard |
Individual |
2.00 |
|
Wallboard |
Composite plate |
950 * 50mm rock wool composite board, double-sided 0.3 steel plate, rock wool melting weight 70kg/m ³ |
Cover |
1.00 |
|
Ground |
Cement pressure fiberboard |
2830*1174*18mm |
Cover |
1.00 |
|
Floor leather |
1.6mm, Floor leather |
Cover |
1.00 |
|
|
Baseboard |
PVC material |
Cover |
1.00 |
|
|
Inside corner |
Concave line |
Color steel inner corner line, white gray |
Branch |
4.00 |
|
Electric distribution |
Electric distribution |
Industrial socket box, 1 set of industrial sockets, 1 distribution box, 1 air switch (32A), 3 five hole sockets (10A), 1 single switch, 1 three hole socket (16A), 2 LED strip lights, complete set of wiring |
Cover |
1.00 |
|
Auxiliary materials |
Auxiliary materials |
Screws, drill tail nails, sealant, internal box connectors |
Cover |
1.00 |
Advantages and features of modular housing
1. Make housing cheap, affordable, and easy to transport.
2. Quick and easy installation, fixed with screws, as convenient as building blocks, 2-3 people can install it within 1-3 days.
3. Movable and can be stacked together flexibly.
4. High return on investment, you can own one at a low cost, whether renting it out or selling it.
5. It has certain wind and earthquake resistance, and is also fireproof

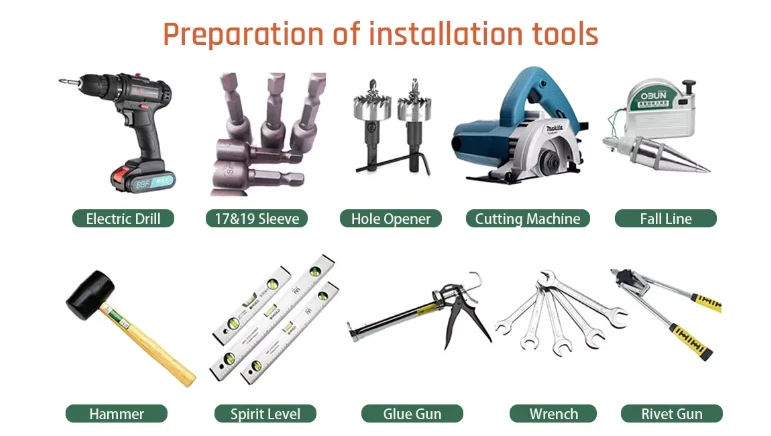

Installation Tools
Application
1. It can be applied to office, residence, dormitory, simple to build, simple and generous
Specifications: Specifications of products on sale 6055*2990*2896 can be customized
Contact
Welcome to buy high-end mobile houses. It is inexpensive and easy to install.
Email: Lzmk88888888@163.com
FAQ
Hot Tags: construction dormitory modular house, China construction dormitory modular house manufacturers, suppliers, factory
