Jiangsu Longze Modular Construction Co., Ltd. has 20 years of expertise in container-based construction, holding ISO 9001 and CE certifications, with exports to multiple countries and cumulative sales of $6 million USD.
What is a Container House?
A container house is an eco-friendly, economical prefab structure featuring:
Steel frame housing with sandwich panels (steel sheets + foam core).
Standard modular designs for flexible space combinations.
Bolt-connected components for easy assembly/disassembly.
Key Advantages
1. Rapid Assembly – Enables standardized, energy-efficient temporary construction.
2. Versatility – Includes steel frame homes, light steel structures, and prefabricated steel frames.
3. Reusability – Designed for multiple relocations and long-term use.
Company Profile
Founded in 2021, Jiangsu Longze is a leading Chinese supplier of prefab houses, specializing in:
Modular containers, mobile board houses, light steel villas, and expandable units.
Applications: Construction sites, disaster relief, schools, military camps, and temporary offices.
Material & Design

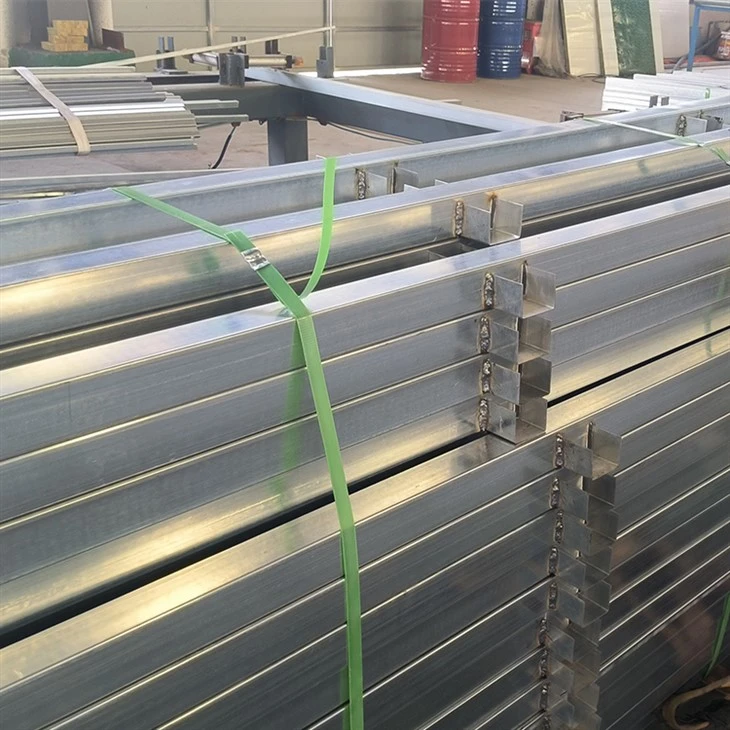

Galvanized steel frames (thickness: 2.3mm, customizable to 2.5mm/3mm).
Corrosion-resistant, durable, and adaptable to various climates.
Specification parameters
|
Dimensions |
5950×3000×2800mm (Customizable) |
|
|
Lifespan |
Over 20 years |
|
|
Steel Frame |
Main Beams (Floor/Base) |
Galvanized beams |
|
Thickness: 3.0mm, 2.5mm, 2.3mm |
||
|
Top Frame |
C80×1.3mm galvanized C-beam |
|
|
20×1.0mm square tube |
||
|
Insulation: 75mm fiberglass wool with silver foil (Density: 14kg/m³) |
||
|
Bottom Frame |
Bottom Frame: 50×100×1.2mm galvanized square tube |
|
|
Columns |
Galvanized steel |
|
|
Corner Fittings |
Galvanized steel |
|
|
Wall System |
50mm sandwich panel |
50mm Rock wool,density ≥80kg/m³ |
|
Floor |
Fiber cement board |
Thickness: 18mm |
|
Vinyl flooring |
Thickness:1.6mm/2.0mm |
|
|
Roof |
ceiling |
V-831 integrated color steel plate (0.4mm) |
|
Window |
Sliding window |
925×1100mm |
|
Door |
Steel security door |
840×2035mm |
|
Electrical |
IP44 distribution box, 100V–250V, 2P63A Cables: 6mm² (main), 4mm² (AC), 2.5mm² (sockets), 1.5mm² (lighting) 4 sockets (1×16A triple, 3×10A duplex), 1 switch, 2×15W LED lights |
|
|
Accessories |
Screws, seals, silicone adhesives, etc. |
|
Benefits of Steel Frame Houses
1. Modular Flexibility – Ideal for offices, cabins, warehouses, villas, hotels, and camps.
2. Cost-Effective – Custom designs tailored to user needs.
3. Scalable – Units can be stacked/linked for expanded space.
Mission: Deliver optimal service and foster long-term partnerships for win-win outcomes.
Applications
Residential/Commercial: Offices, dormitories, retail spaces, schools, and light industrial workshops.

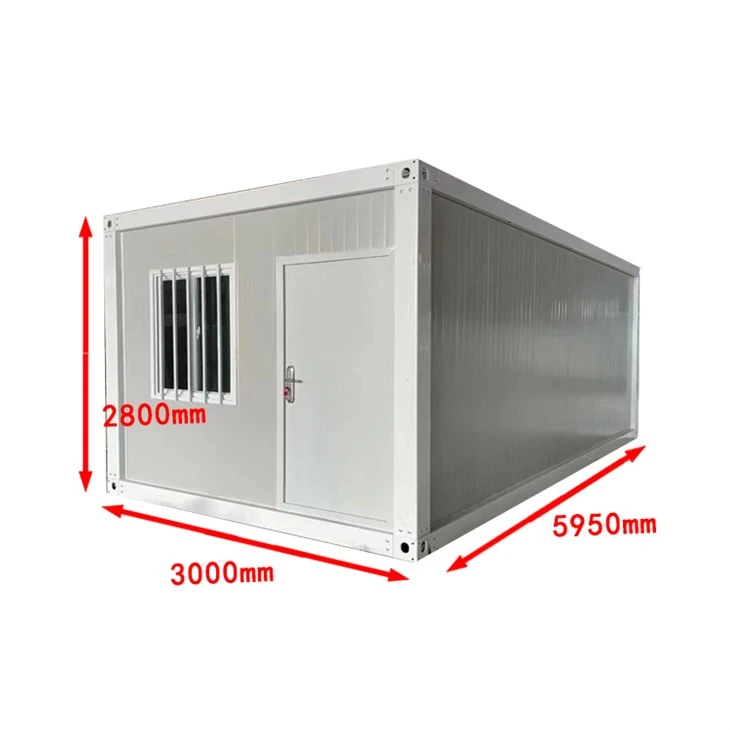

Standard Size: 5950×3000×2800mm (Customizable)
