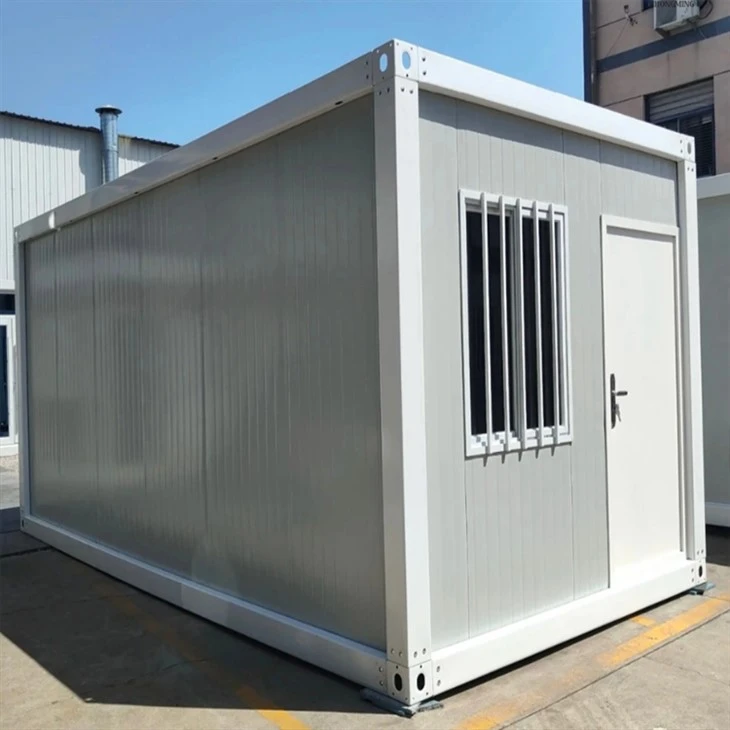

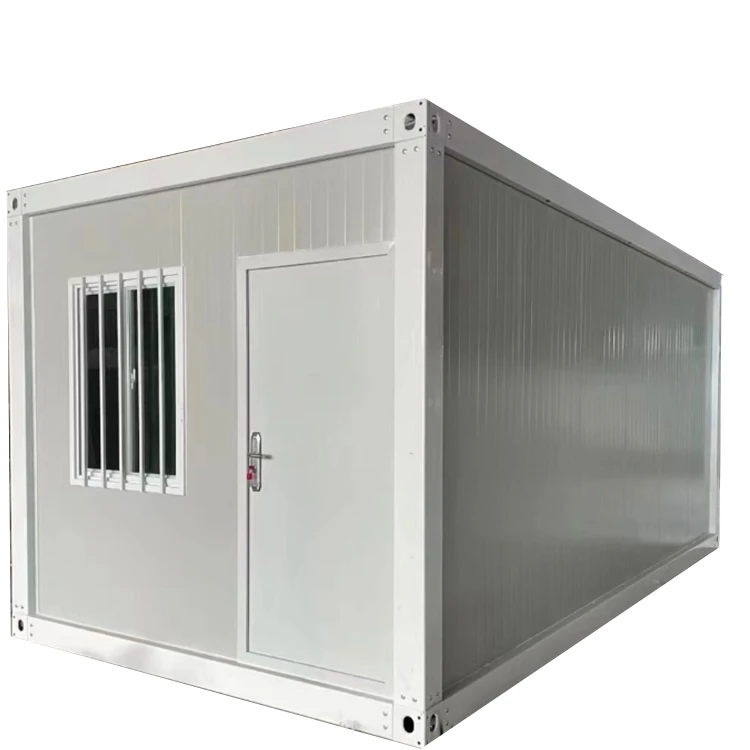

Jiangsu Longze Modular Construction Co., Ltd. has been engaged in container manufacturing for over 20 years and holds international ISO 9001 and CE certifications. The frame quick splicing container is a modular building system centered on a lightweight steel frame, enabling rapid assembly through standardized connectors. Its core design philosophy is "frame-first, flexible infill," combining prefabricated frame structures with replaceable enclosure systems to achieve efficient construction, adaptable adjustments, and reusability.
Using high-strength cold-formed thin-walled steel or aluminum alloy frames as the primary support, these containers are 30%–50% lighter than traditional ones, reducing transportation and lifting costs while maintaining high load-bearing capacity (stackable up to 2–3 layers). Built as modular units, they can be freely stacked and combined. Each unit may function as an entire room, multiple rooms, or part of a larger space. Flat-pack container houses can be assembled in any length or width configuration, stacked up to three layers, and adorned with custom roofs or terraces. Thermal insulation is applied to the top and bottom frames for enhanced design efficiency. Every room is finished to standard, with all living facilities pre-installed.
Detailed Introduction
Established in 2021 under the Longwan Group, Jiangsu Suqian Longze Modular Construction Co., Ltd. is a specialized integrated housing enterprise focusing on R&D, production, installation, and services, with a registered capital of 30 million yuan. Spanning 16,615 square meters, our facility includes over 9,000 square meters of workshop space and employs 28 staff. We produce various sandwich panels and containers, equipped with two rock wool sandwich panel production lines, one electrostatic spraying line, five welding lines, one shear machine, one bending machine, three color profiled tile lines, and four steel forming lines. Annual production capacity reaches 200,000 meters of sandwich panels and 10,000 containers, with daily outputs of 100 quick-assembly containers, 30 packable containers, 45 fixed containers, and 3,000 meters of sandwich panels.
Accessories Introduction
Socket Selection
Specification parameters
|
Dimensions |
5950×3000×2800mm (Customizable) |
|
|
Lifespan |
Over 20 years |
|
|
Steel Frame |
Main Beams (Floor/Base) |
Galvanized beams |
|
Thickness: 3.0mm, 2.5mm, 2.3mm |
||
|
Top Frame |
C80×1.3mm galvanized C-beam |
|
|
20×1.0mm square tube |
||
|
Insulation: 75mm fiberglass wool with silver foil (Density: 14kg/m³) |
||
|
Bottom Frame |
Bottom Frame: 50×100×1.2mm galvanized square tube |
|
|
Columns |
Galvanized steel |
|
|
Corner Fittings |
Galvanized steel |
|
|
Wall System |
50mm sandwich panel |
50mm Rock wool,density ≥80kg/m³ |
|
Floor |
Fiber cement board |
Thickness: 18mm |
|
Vinyl flooring |
Thickness:1.6mm/2.0mm |
|
|
Roof |
ceiling |
V-831 integrated color steel plate (0.4mm) |
|
Window |
Sliding window |
925×1100mm |
|
Door |
Steel security door |
840×2035mm |
|
Electrical |
IP44 distribution box, 100V–250V, 2P63A Cables: 6mm² (main), 4mm² (AC), 2.5mm² (sockets), 1.5mm² (lighting) 4 sockets (1×16A triple, 3×10A duplex), 1 switch, 2×15W LED lights |
|
|
Accessories |
Screws, seals, silicone adhesives, etc. |
|
Advantages of Frame Quick Splicing Containers
1. Low Cost: Significantly cheaper than traditional construction, ideal for small-scale projects.
2. Rapid Installation: Fixed with screws like building blocks; 2–3 people can assemble in 1–3 days without cranes.
3. Portability: Easy to disassemble, relocate, or transport.
4. Custom Design: Flexible dimensions and extensive decoration options for exteriors and interiors.
5. Durability: Lifespan of 15–20 years.
Applications
Suitable for offices, residences, dormitories, etc. Simple to build and elegant in design.
Specifications: (For products currently available)
5950×3000×2800mm (customizable).
Contact
Welcome to purchase high-quality frame quick splicing containers at affordable prices with easy installation.
