Introduction: With 20 years of professional container manufacturing experience, international 9001 and ce certification, as well as a number of container invention patents, splicing steel structure module is a modular building system based on standardized steel components, formed through factory prefabrication and on-site rapid assembly. Its core is to decompose the building into independent functional units (such as rooms, stairwells, equipment rooms, etc.). After completing the main structure, pipelines and part of the interior decoration in the factory, it is transported to the site through high-strength connection technology (bolts, welding or plugging) to form a complete building. The technology combines industrial manufacturing and flexible design, and is widely used in multi-high-rise buildings, public facilities and special scenes.
Detailed Introduction
Jiangsu Suqian Longze Module Construction Co., Ltd. was established in 2021 with a registered capital of 30 million yuan; it belongs to Longwan Group. Jiangsu Suqian Longze Module Construction Co., Ltd. is a professional enterprise in the field of integrated housing integrating scientific research, production, installation and service, mainly engaged in wholesale and retail. The enterprise covers an area of 16,615 square meters, with an existing factory area of more than 9,000 square meters and 28 employees. It mainly produces all kinds of sandwich panels and containers. There are two rock wool sandwich panel production lines, one electrostatic spraying line, five welding production lines, one shearing machine, one bending machine, three color pressing tile production lines, and four steel forming production lines. After the implementation and commissioning, 200,000 meters of sandwich panels and 10,000 containers can be produced every year. Nissan can assemble 100 boxes, 30 packing boxes, 45 fixed boxes, and 3000 meters of sandwich panels.
Packaging And Transportation
Specification parameters
|
Dimensions |
5950×3000×2800mm (Customizable) |
|
|
Lifespan |
Over 20 years |
|
|
Steel Frame |
Main Beams (Floor/Base) |
Galvanized beams |
|
Thickness: 3.0mm, 2.5mm, 2.3mm |
||
|
Top Frame |
C80×1.3mm galvanized C-beam |
|
|
20×1.0mm square tube |
||
|
Insulation: 75mm fiberglass wool with silver foil (Density: 14kg/m³) |
||
|
Bottom Frame |
Bottom Frame: 50×100×1.2mm galvanized square tube |
|
|
Columns |
Galvanized steel |
|
|
Corner Fittings |
Galvanized steel |
|
|
Wall System |
50mm sandwich panel |
50mm Rock wool,density ≥80kg/m³ |
|
Floor |
Fiber cement board |
Thickness: 18mm |
|
Vinyl flooring |
Thickness:1.6mm/2.0mm |
|
|
Roof |
ceiling |
V-831 integrated color steel plate (0.4mm) |
|
Window |
Sliding window |
925×1100mm |
|
Door |
Steel security door |
840×2035mm |
|
Electrical |
IP44 distribution box, 100V–250V, 2P63A Cables: 6mm² (main), 4mm² (AC), 2.5mm² (sockets), 1.5mm² (lighting) 4 sockets (1×16A triple, 3×10A duplex), 1 switch, 2×15W LED lights |
|
|
Accessories |
Screws, seals, silicone adhesives, etc. |
|

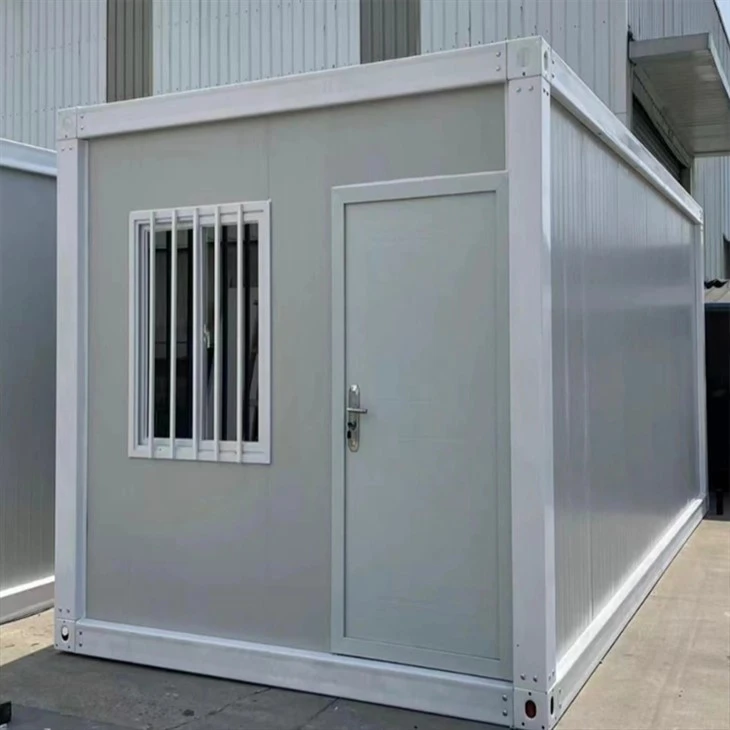

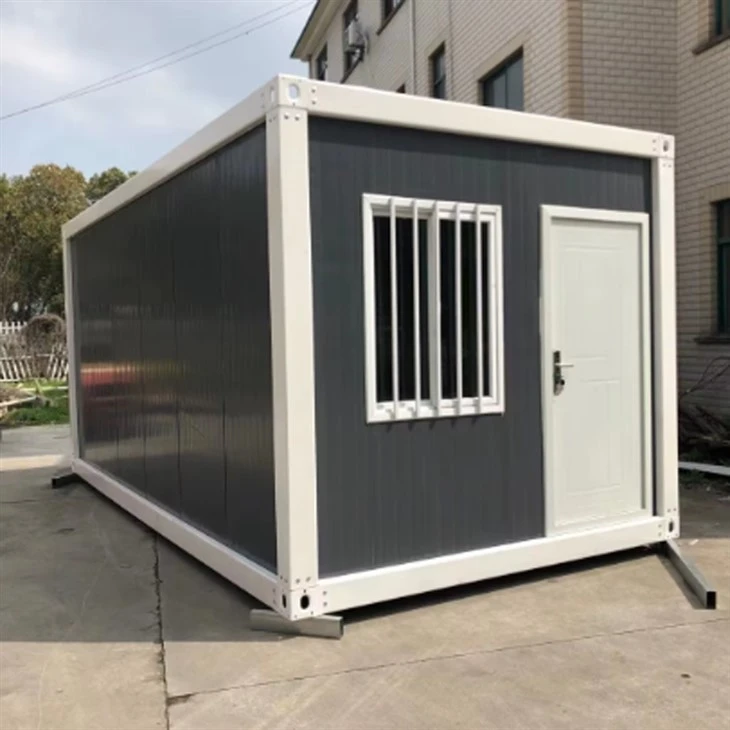

Advantages of Splicing Steel Structure Modules
1. Cost-Effective: Significantly cheaper than traditional construction, ideal for small-scale projects.
2. Rapid Installation: Bolt-fixed assembly like building blocks; 2–3 people can complete in 1–3 days without cranes.
3. Portability: Easy to disassemble, relocate, or reconfigure.
4. Custom Design: Flexible dimensions and extensive decoration options for exteriors/interiors.
5. Durability: Lifespan of 15–20 years.
Applications
Suitable for offices, residences, dormitories, etc. Simple to build with a sleek design.
Specifications: (For products currently available)
5950×3000×2800mm (customizable).
