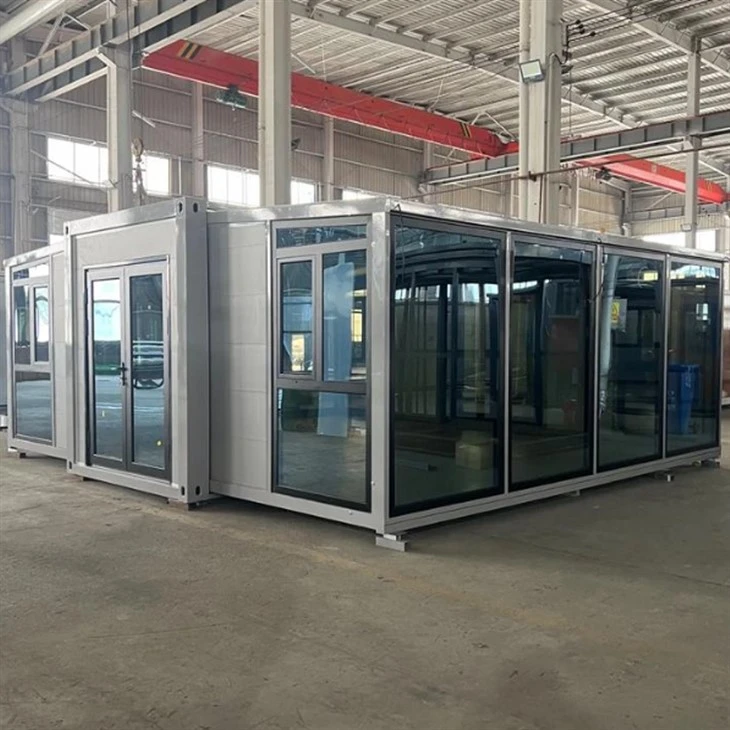

Introduction
With 20 years of professional container manufacturing experience, we hold international ISO 9001 and CE certifications. Our small prefabricated container homes feature balconies for enjoying coffee or barbecues outdoors in good weather.
Key Features
Double-glazed windows for safety, compliant with your national standards.
Double-glazed aluminum doors for security, compliant with your national standards.
Stylish kitchen with cabinets and UV panels for easy cleaning.
Built-in bathroom and toilet.
Vinyl flooring for easy maintenance.
Electrical system compliant with your national standards.
Company Profile
Jiangsu Suqian Longze Modular Construction Co., Ltd. was established in 2021 with a registered capital of 30 million RMB, under the Longwan Group. The company occupies over 30 acres with a factory area of 15,000 square meters. Our production lines include:
Three sandwich panel production lines.
One fully automated electrostatic coating line.
Five automated welding production lines.
Six color profiled sheet production lines (800 glazed tiles, 831 ceiling tiles, 840, 900, 931, 980, 1000, etc.).
Six steel forming production lines.
We can produce 200 containers and 5,000 meters of color steel sandwich panels daily. Our EPS, polyurethane, rock wool, and glass wool sandwich panels are widely used in industrial plants, clean rooms, warehouses, cold storage, prefab houses, building extensions, and other insulated spaces.
We have branches and production bases in Suqian, Suzhou, Nanjing, and Wuxi, with annual sales of $6 million and exports to multiple countries.
Installation Process
Quick installation, completed in 1 hour.
Wall Panel Colors
Floor color
Specification parameters
|
Basic Features (20 feet) |
External dimensions (mm) |
5900*6320*2480 |
|
Folded state (mm) |
5900*2200*2480 |
|
|
Total mass (kg) |
2900 |
|
|
Basic Features (40 feet) |
External dimensions (mm) |
11800*6320*2480 |
|
Folded state (mm) |
11800*2200*2480 |
|
|
Total mass (kg) |
4700 |
|
|
Other sizes |
Customized according to requirements |
|
|

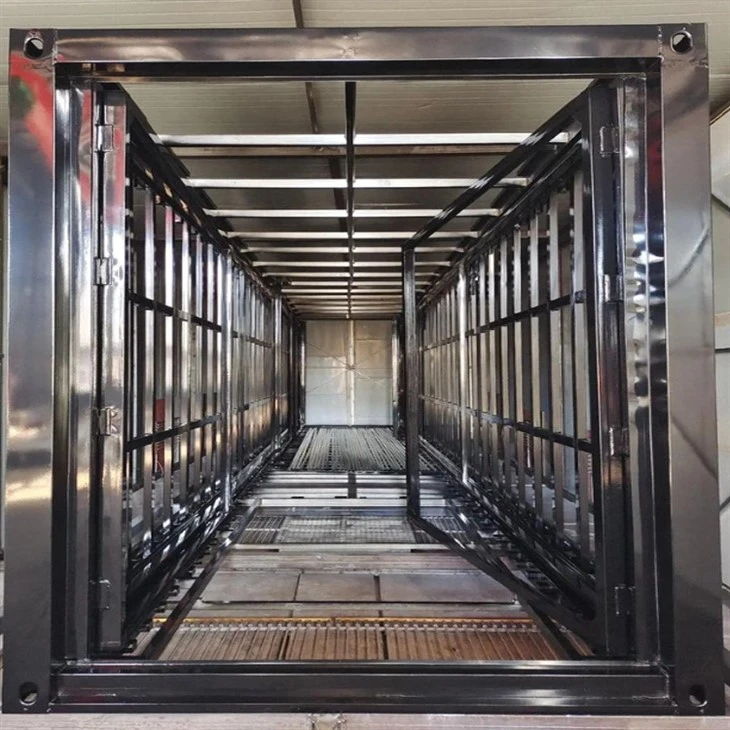

Frame structure Container top Wall panels Floor |
Steel structure |
Q235 galvanized steel frame |
|
Middle roof beam |
Q235 galvanized steel frame (2.5-3mm) |
|
|
Middle base beam |
Q235 galvanized steel frame (2.5-3mm) |
|
|
Side beam |
Q235 galvanized steel frame (1.5-2mm) |
|
|
Side wall frame |
Q235 galvanized steel frame (1.5-2mm) |
|
|
Middle PILLIAR |
Q235 galvanized steel frame (2.5-3mm) |
|
|
Subframe |
Q235 galvanized steel frame (1.5-2mm) |
|
|
Protective coating of the whole frame |
Electrostatic spraying/white plastic powder spraying |
|
|
Wall panels |
External roof panel |
Fire retardant EPS insulation sandwich panel and roof corrugated veneer |
|
Internal CELLING panel |
0.25 type-200 CELLING |
|
|
Doors |
Mid-roof insulation |
50mm fire retardant insulation sandwich panel/color steel panel with glass filament wool |
|
Side wall, front wall panel and rear wall panel |
65mm fire retardant insulation sandwich panel/color steel panel with glass filament wool |
|
|
Internal partition |
55m environmentally friendly insulation material |
|
|
Floor |
Middle floor |
18mm fire retardant glass magnesium board/fire retardant cement fiber floor |
|
Both sides floor |
18mm bamboo floor/thick bamboo plywood |
|
|
Electrical system (customized) |
Electrical wiring, installation strictly in accordance with moisture-proof specifications, all electrical products should comply with certification. Connect the circuit according to the circuit engineering specifications, indoor: 2 LED lights, 2 CEILIING lights, 3 five-hole single sockets, 1 single switch, 3 ten-hole sockets, 1 air-conditioning socket, 1 20a-leakage protector. Voltage 220V, 50hz |
|
|
We can customize circuits that meet certification requirements according to different countries. |
||
|
Doors |
Aluminum entrance door (with code lock), bedroom metal swing door |
|
|
Windows |
Aluminum windows, double-layer heat-insulating tempered glass |
|
Benefits of Prefabricated Container Homes
1. Faster Construction: Components are prefabricated in factories, reducing on-site assembly time.
2. Cost-Effective: Lower material and labor costs compared to traditional construction.
3. Higher Quality: Factory-controlled production ensures precision and thorough inspections.
4. Eco-Friendly: Uses recyclable materials, minimizes waste, and reduces environmental impact.
5. Flexible Design: Customizable to meet specific needs and preferences.
6. Energy Efficient: Designed to maximize energy savings and incorporate renewable technologies.
7. Sustainable: Production processes prioritize material efficiency and recyclability.
Applications
Offices, residences, dormitories.
Contact
Welcome to purchase high-end modular container homes. Affordable and easy to install.
Email: Lzmk88888888@163.com
WhatsApp: [Provide WhatsApp contact details]
