Introduction
Assembled prefab expandable container house provides three types of house types: one bedroom, one living room, one bathroom, two bedrooms, one living room, one bathroom, and three bedrooms, one living room, one bathroom, giving you a more flexible and comfortable space experience.
The double-wing folding box is made of sturdy and durable materials to ensure the safety and stability of the house. At the same time, its folding design greatly saves transportation and storage space, which is very economical and practical. This product is very suitable for foreign trade export, and each 40-foot high cabinet can hold 2 sets of double-wing folding boxes.
The double-wing folding box has a wide range of application scenarios, including homestays, simple dormitories, military camps, warehouses, supermarkets, convenience stores, construction site dormitory project departments, etc.!
Expandable container house with three bedroom home provides three bedrooms, which can accommodate multiple people and can also be rented out.
Specification parameters
|
Basic Features (20 feet) |
External dimensions (mm) |
5900*6320*2480 |
|
Folded state (mm) |
5900*2200*2480 |
|
|
Total mass (kg) |
2900 |
|
|
Basic Features (40 feet) |
External dimensions (mm) |
11800*6320*2480 |
|
Folded state (mm) |
11800*2200*2480 |
|
|
Total mass (kg) |
4700 |
|
|
Other sizes |
Customized according to requirements |
|
|
Frame structure Container top Wall panels Floor |
Steel structure |
Q235 galvanized steel frame |
|
Middle roof beam |
Q235 galvanized steel frame (2.5-3mm) |
|
|
Middle base beam |
Q235 galvanized steel frame (2.5-3mm) |
|
|
Side beam |
Q235 galvanized steel frame (1.5-2mm) |
|
|
Side wall frame |
Q235 galvanized steel frame (1.5-2mm) |
|
|
Middle PILLIAR |
Q235 galvanized steel frame (2.5-3mm) |
|
|
Subframe |
Q235 galvanized steel frame (1.5-2mm) |
|
|
Protective coating of the whole frame |
Electrostatic spraying/white plastic powder spraying |
|
|
Wall panels |
External roof panel |
Fire retardant EPS insulation sandwich panel and roof corrugated veneer |
|
Internal CELLING panel |
0.25 type-200 CELLING |
|
|
Doors |
Mid-roof insulation |
50mm fire retardant insulation sandwich panel/color steel panel with glass filament wool |
|
Side wall, front wall panel and rear wall panel |
65mm fire retardant insulation sandwich panel/color steel panel with glass filament wool |
|
|
Internal partition |
55m environmentally friendly insulation material |
|
|
Floor |
Middle floor |
18mm fire retardant glass magnesium board/fire retardant cement fiber floor |
|
Both sides floor |
18mm bamboo floor/thick bamboo plywood |
|
|
Electrical system (customized) |
Electrical wiring, installation strictly in accordance with moisture-proof specifications, all electrical products should comply with certification. Connect the circuit according to the circuit engineering specifications, indoor: 2 LED lights, 2 CEILIING lights, 3 five-hole single sockets, 1 single switch, 3 ten-hole sockets, 1 air-conditioning socket, 1 20a-leakage protector. Voltage 220V, 50hz |
|
|
We can customize circuits that meet certification requirements according to different countries. |
||
|
Doors |
Aluminum entrance door (with code lock), bedroom metal swing door |
|
|
Windows |
Aluminum windows, double-layer heat-insulating tempered glass |
|

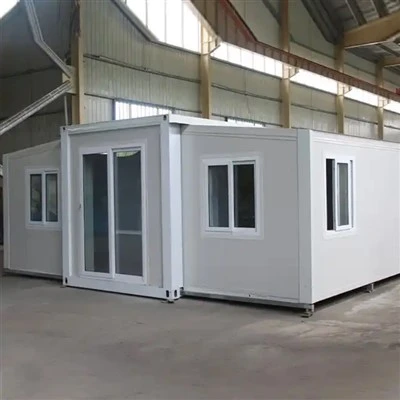

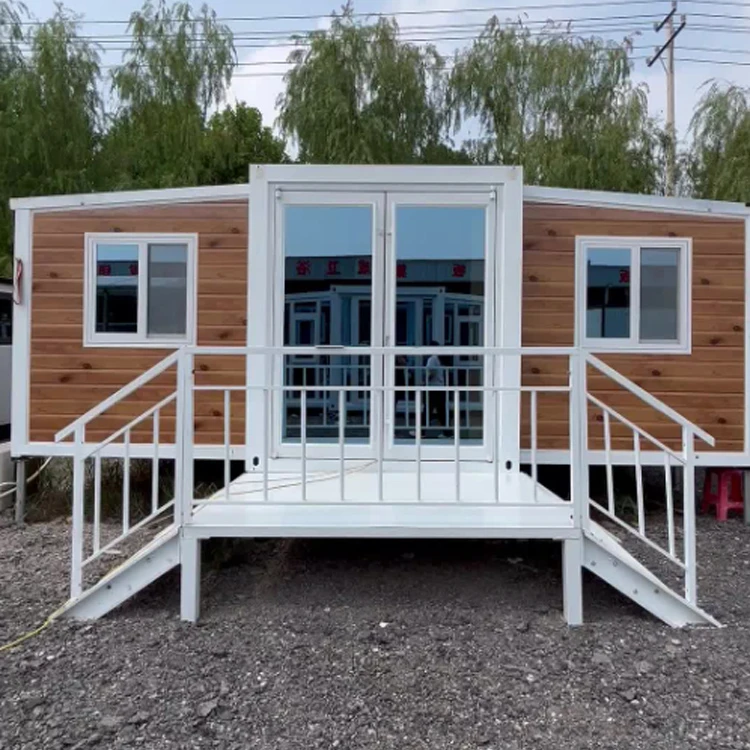

Assembled three bedroom home prefab expandable container house
Advantages
Convenient transportation: Modular design supports overall transportation,
Detachable and removable: The house can be quickly folded and installed to meet temporary housing needs or site change requirements.
Reduce pollution: Factory prefabrication reduces on-site construction waste, dust and noise pollution.
Energy-saving design: The wall integrates thermal insulation layer to reduce daily energy consumption

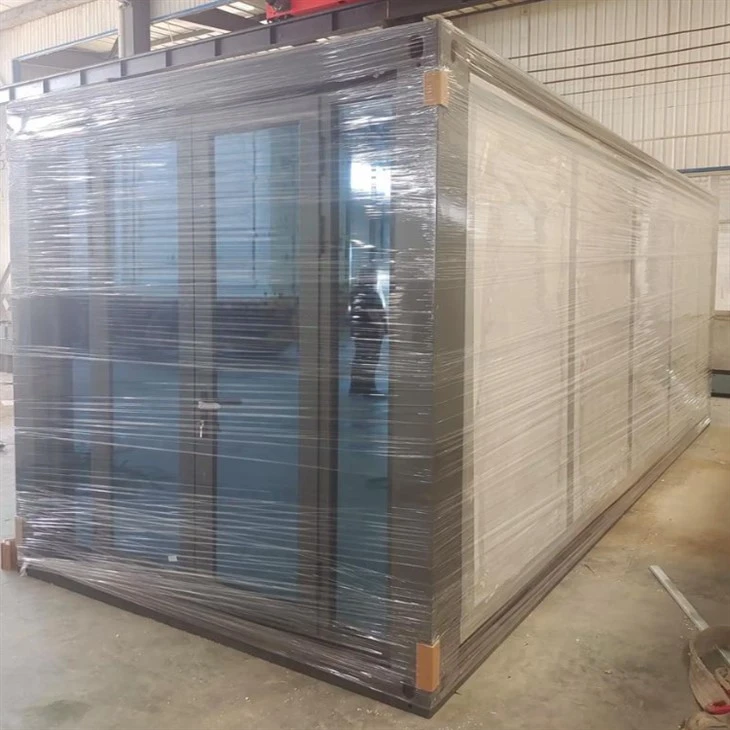

Packaging and delivery
In order to better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Application
1. It can be applied to office, residence, dormitory, simple to build, simple and generous
Specifications: Specifications of products on sale
Customizable
Contact
Welcome to purchase high-end splicing steel structure modules. It is inexpensive and easy to install.
