Introduction
20 years of professional container manufacturing experience, obtained international 9001, and CE certification,
What is modularization
Take the container as an example, (common size is 6m long, 3m wide, 2.8m high) as the basic unit, through welding, bolt connection or assembly technology to achieve rapid combination, assembled into one house, saving time and effort.
Modular container house is a galvanized steel container, with galvanized steel as the main material, corrosion resistance. The sandwich panel is iron sheet on both sides and foam board in the middle. It adopts the space combination of the standard modulus series and the environmentally friendly economic activity board house with bolted components. This is a brand new concept.
Details
Jiangsu Suqian Longze Modular Construction Co., Ltd. was established in 2021 with a registered capital of 30 million yuan; it is affiliated to Longwan Group. The company covers an area of more than 30 acres, with a plant area of 15,000 square meters. It currently has three sandwich panel production lines, one fully automatic electrostatic coating line, five automatic welding production lines, 800 glazed tiles, 831 ceiling tiles, 840, 900, 931, 980, 1000 and other colored corrugated tile production lines, and six steel forming production lines. It can produce 200 containers of various types and 5,000 meters of colored steel sandwich panels per day. Among them, the EPS sandwich panels, polyurethane sandwich panels, rock wool sandwich panels, glass wool sandwich panels produced by our company have been widely used in large industrial plants, electronic clean workshops, warehouses, cold storage, mobile houses, building floors, clean workshops and places requiring thermal insulation.
At the same time, we have branches and production bases in Suqian, Suzhou, Nanjing, Wuxi and other places. In recent years, it has been sold to many countries. Annual sales of 6 million US dollars.
Custom Color
A. We can change the color of the wall panels according to customer requirements, blue, white or gray and other colors.
B. Doors and roof tiles are usually white. The standard floor color is gray, but you can choose a different floor color, such as wood grain color, etc.
Wall Panel Color
Floor Color

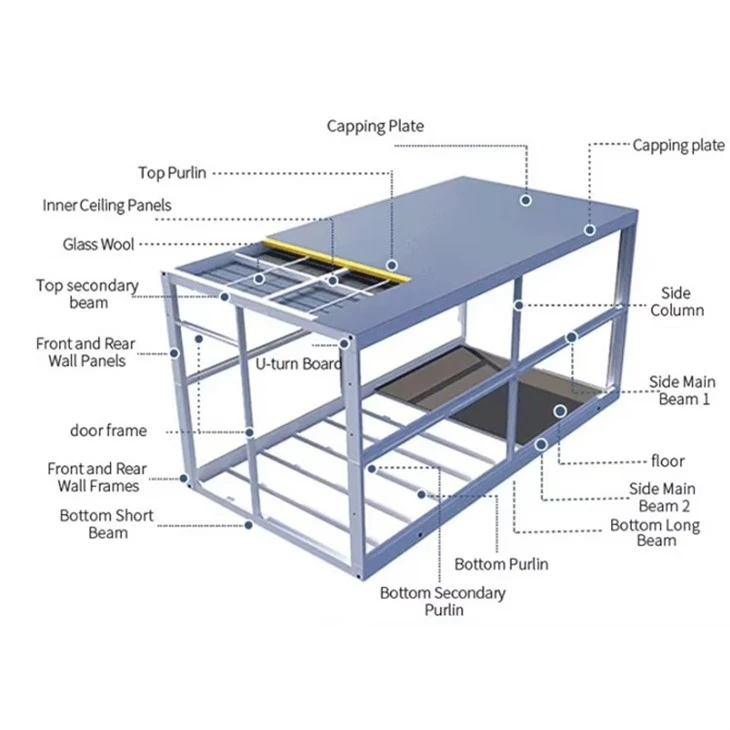

Specification parameters
|
Features Structure |
External dimensions (mm) |
5800*2480*2560 |
|
|
Internal dimensions (mm) |
5640*2340*2400 |
|
|
|
Folded dimensions (mm) |
5800*2480*360 |
|
|
|
Gross weight (kg) |
1100 |
|
|
|
Roof Siding Flooring Electricity |
Roof side beams |
Q235B rectangular tube 60 × 1.2 mm |
|
|
Bottom side beams |
Q235B rectangular tube 60 × 140 × 1.2 mm |
|
|
|
Each end side beams |
Q235B rectangular tube 40*60 × 1.2 mm |
|
|
|
Front and rear side frames |
Q235B rectangular tube 40*80 × 1.2 mm |
|
|
|
Bottom weight capacity |
Q235B rectangular tube 40 × 1.2 mm |
|
|
|
Lifting head |
Q235B 108mm * 165mm (3m) |
|
|
|
Folding hinges |
Galvanized hinge 13mm |
|
|
|
Security Doors Windows Features |
Overall frame protective paint |
Electrostatic spraying/straight white plastic powder |
|
|
External top plate |
Galvanized sheet 0.4mm |
|
|
|
Inner ceiling |
Color coated sheet V/910/0.2mm |
|
|
|
Structure |
Insulating glass wool |
Glass wool 50mm |
|
|
Side walls |
50mm composite board 0.20mm + glass wool + 0.20mm |
|
|
|
Front and rear baffles |
65mm plywood 0.20mm + glass wool (bulk density 28kg) + 0.20mm |
|
|
|
Roof |
Fireproof glass magnesium floor, thickness: 15mm |
|
|
|
Siding |
Electrical wiring must be installed strictly in accordance with moisture-proof regulations, and all electrical products must comply with CE certification. Connect the circuit according to the circuit engineering specifications. Indoor entrance wiring: 4² |
||
|
Flooring |
National standard soft copper wire, 1 20A circuit breaker, socket entrance line: 2.5², |
|
|
|
Electricity |
1 single socket with five holes, 1 socket with ten holes, |
|
|

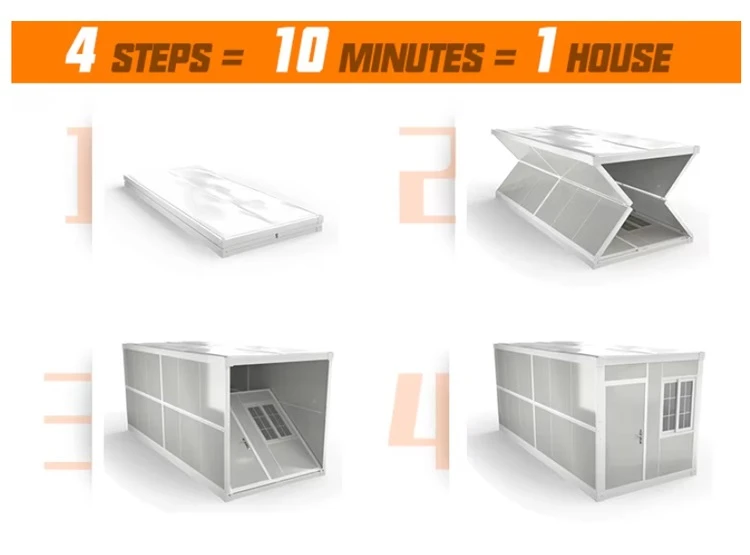

Installation steps
Advantages and features of disaster relief containers
1. Flexible mobility
Convenient transportation: Quick assembly, just three steps, and a box can be built in 10 minutes
2. Excellent environmental performance: There is no dust pollution during the installation process.
4. Customized design support, we customize the size, color, and interior layout of the guest team according to your needs
5. The service life is 15 to 20 years
Application
1. It can be used as office, residence, and dormitory
Specifications: Specifications of the products on sale
5800*2480*2560 can be customized
Contact
Welcome to purchase high-end modular containers. It is inexpensive and easy to install.
Email: Lzmk88888888@163.com
